⚙️ Basic Information

Model NO.

ZKBOT-301ED

Material

Metal

Power

Rechargeable

Standard

ASTM F963

Motor

42 Stepper Motor

Payload

0.5kg

Technology

PLC

Open Source

All Open Source

Max Speed

56/S

Max Reach

400mm

Work Voltage

220V/110V

Warranty

1 Year

🤖 Product Description

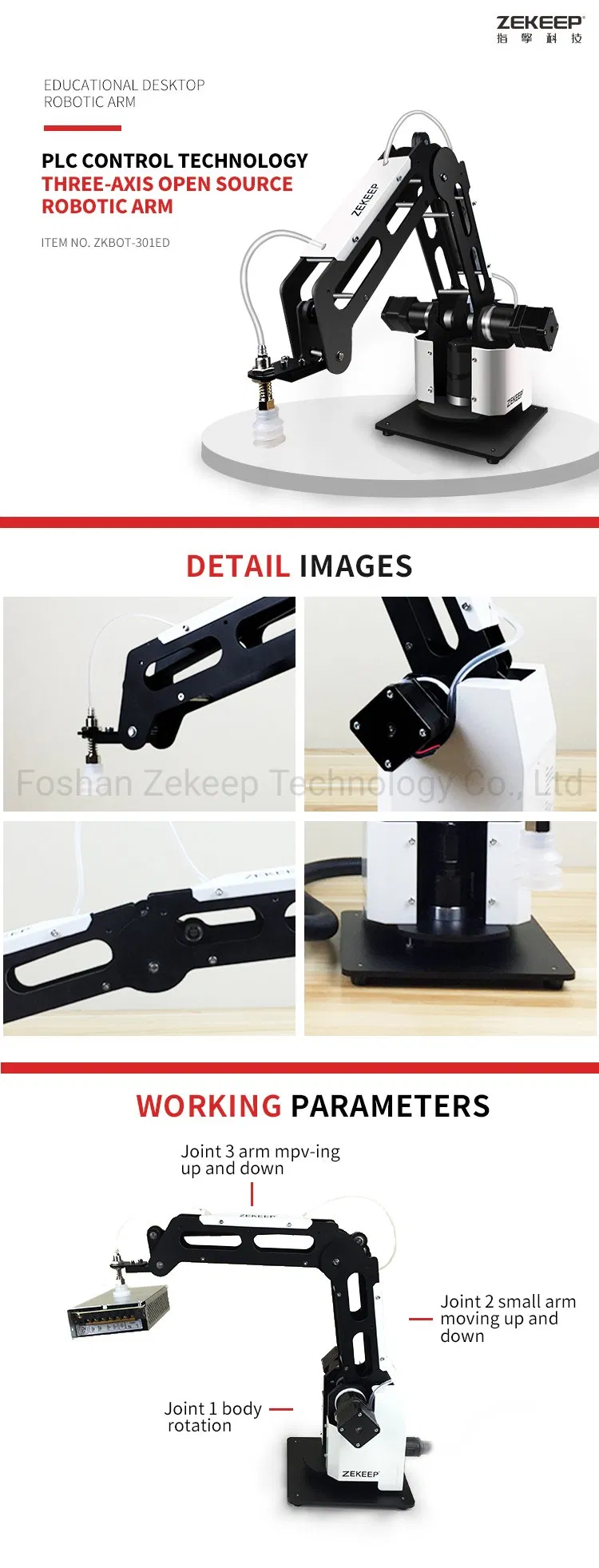

EDUCATIONAL DESKTOP ROBOTIC ARM
PLC CONTROL TECHNOLOGY 3 AXIS OPEN SOURCE ROBOTIC ARM
ITEM NO. ZKBOT-301Ed

This 3-axis educational robotic arm is designed for loads below 0.5kg. It is an ideal tool for educational institutions, allowing students to learn the principles of science, engineering, programming, artificial intelligence, and automation. It enhances technical skills, creativity, teamwork, and problem-solving abilities, helping students advance their future career paths.

Established in 2015, the development focuses on the research and upgrading of industrial robotic arms and smart small-scale robots for economic and educational applications.

📊 Robot Working Parameters

Model: ZKBOT-301Ed	DOF: 3 Axis
Payload: 0.5KGS	Repeat Position Accuracy: ±1MM
Max Reach: 400MM	Working Temperature: -10°~50°
Supply voltage: AC220V/110V	Power: Max 150W
Movement locus: Point-To-Point	I/O: Input 1 / Output 1

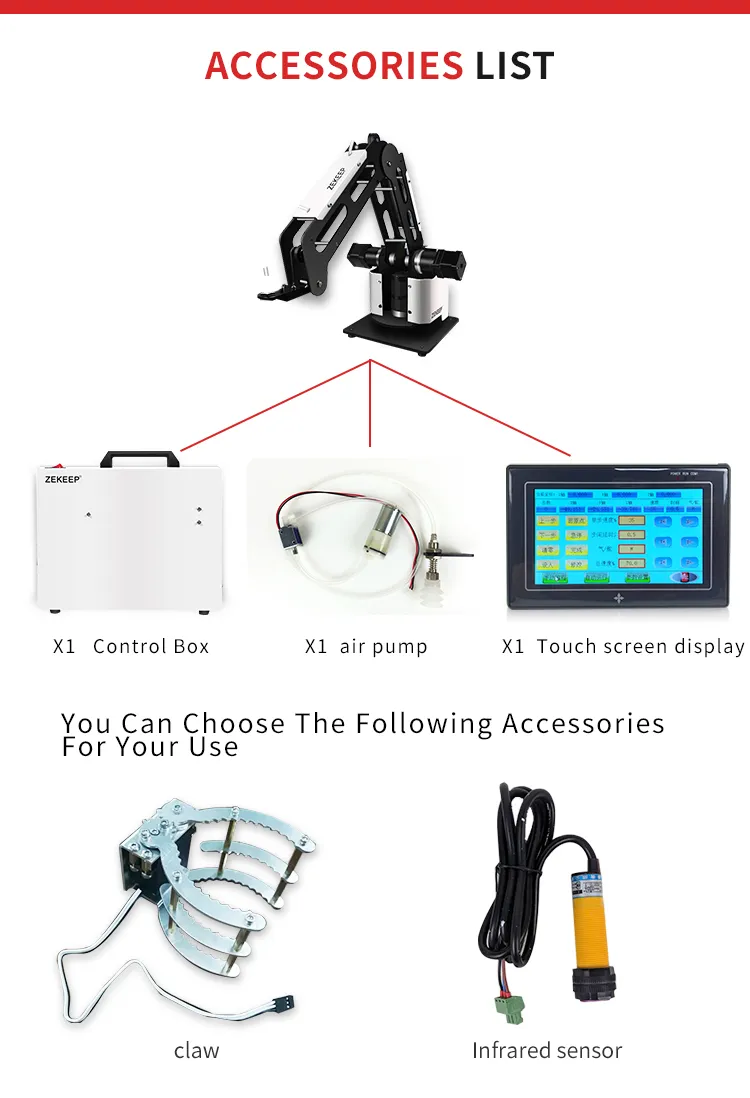

Motor: 42 Stepping Motor	Control: APP/ Remote / Control Box

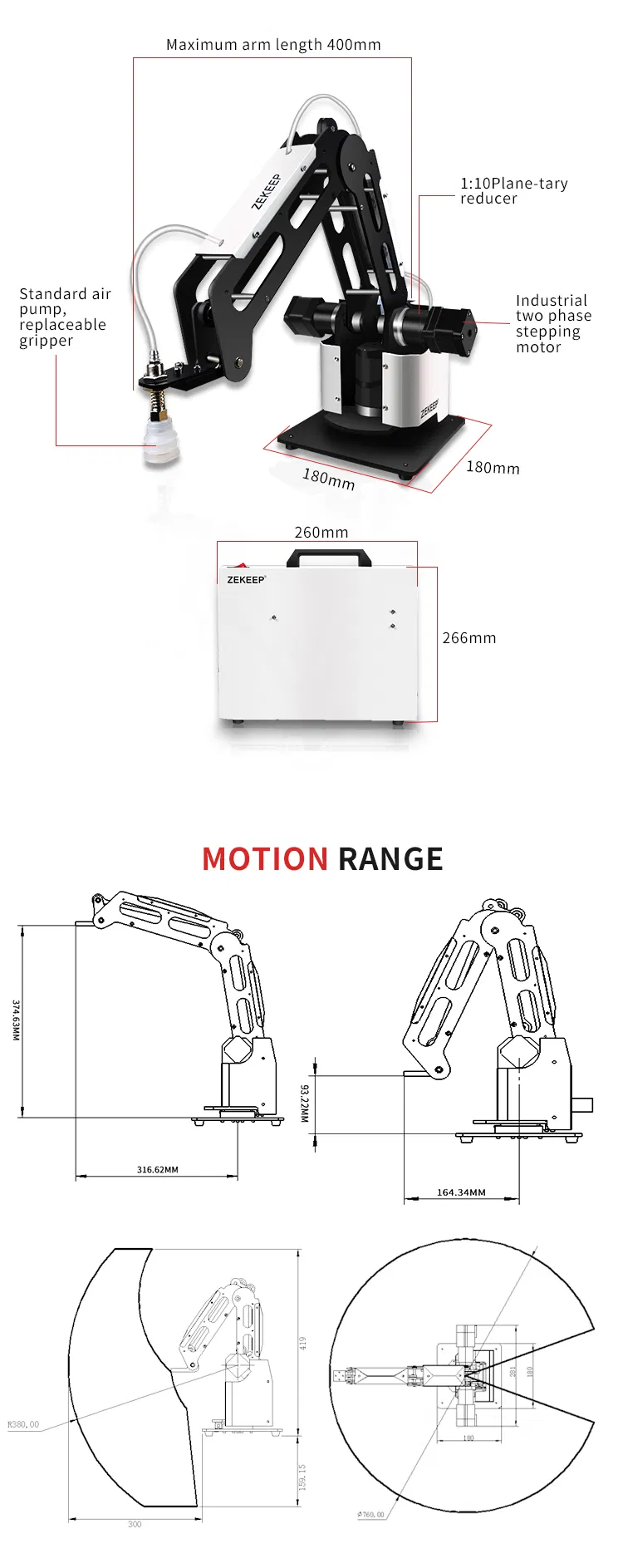

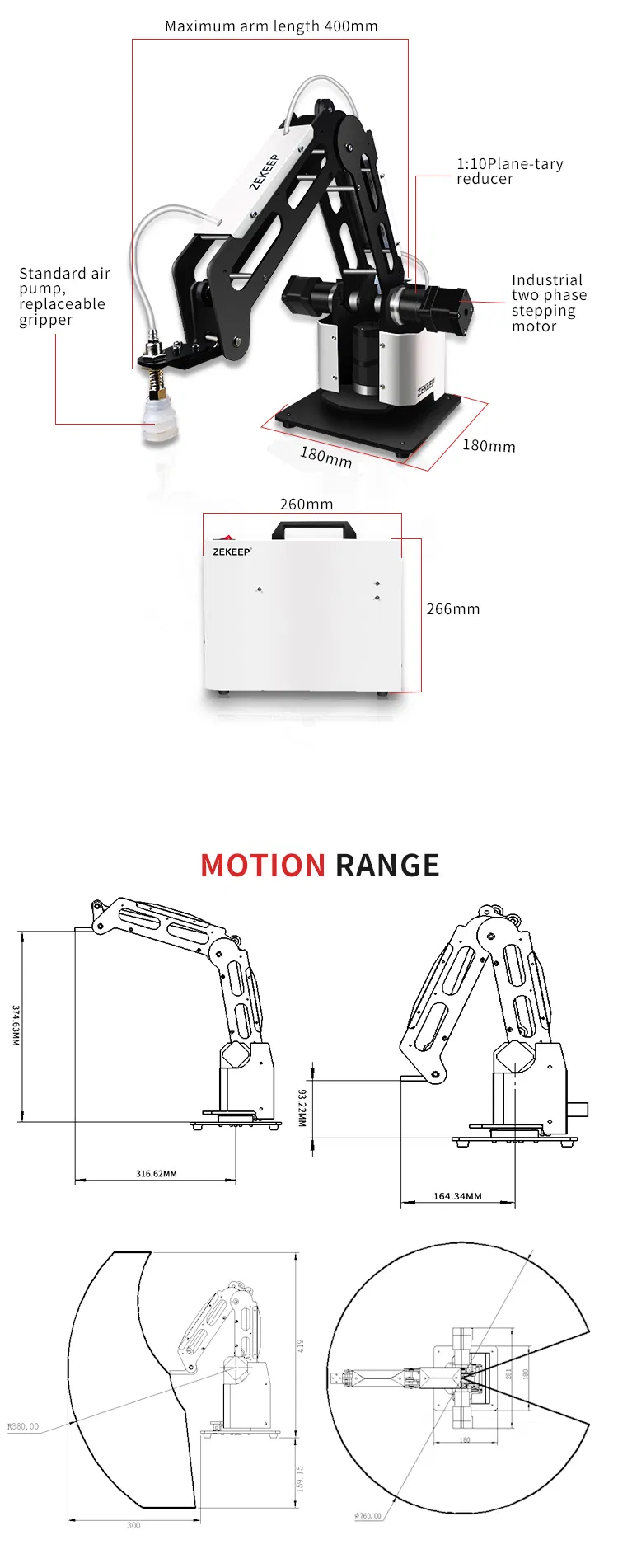

📐 Axis & Base Parameters

Axis Speed & Range
Max speed (J1, J2, J3)	80°/s
Operating Range J1	-300°
Operating Range J2 / J3	-90°

Mechanical & Control Box
Material	Aluminum alloy
Base size	180mm * 180mm
Net Weight	5.2Kgs
Control box size	260mm * 160mm * 260mm

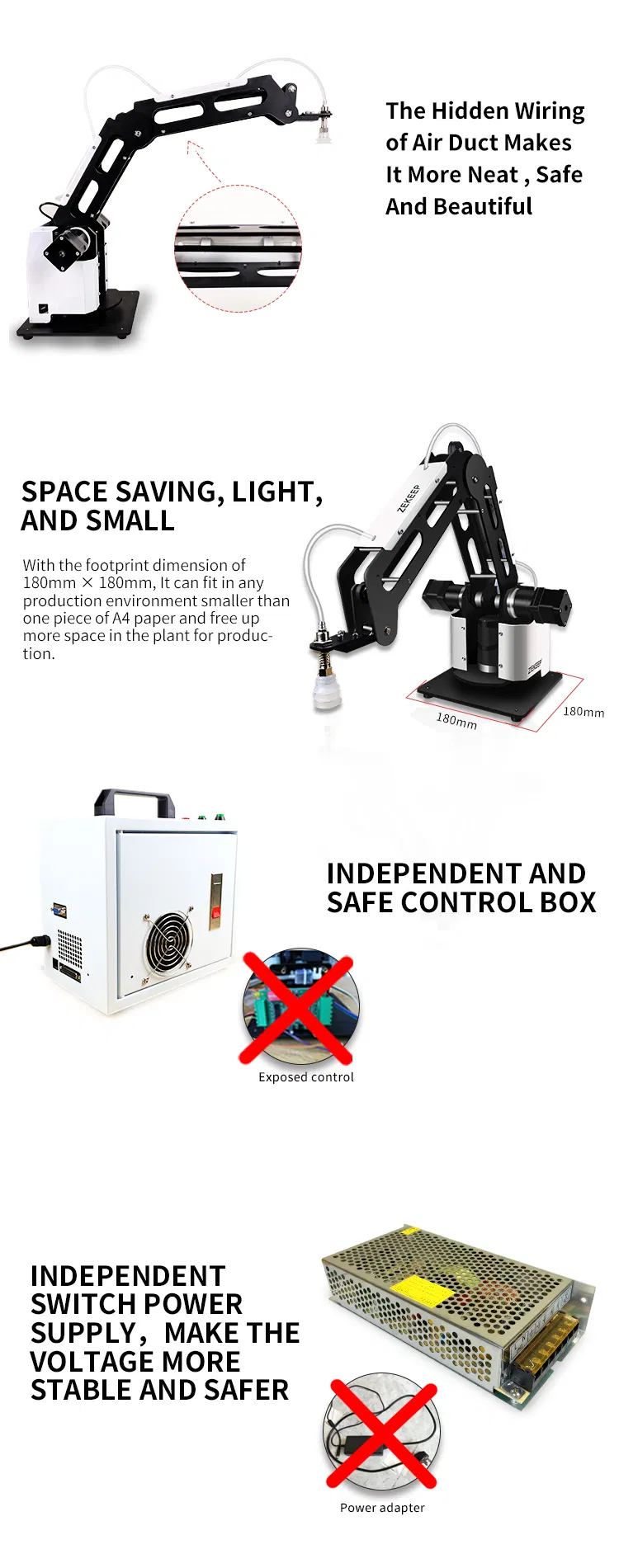

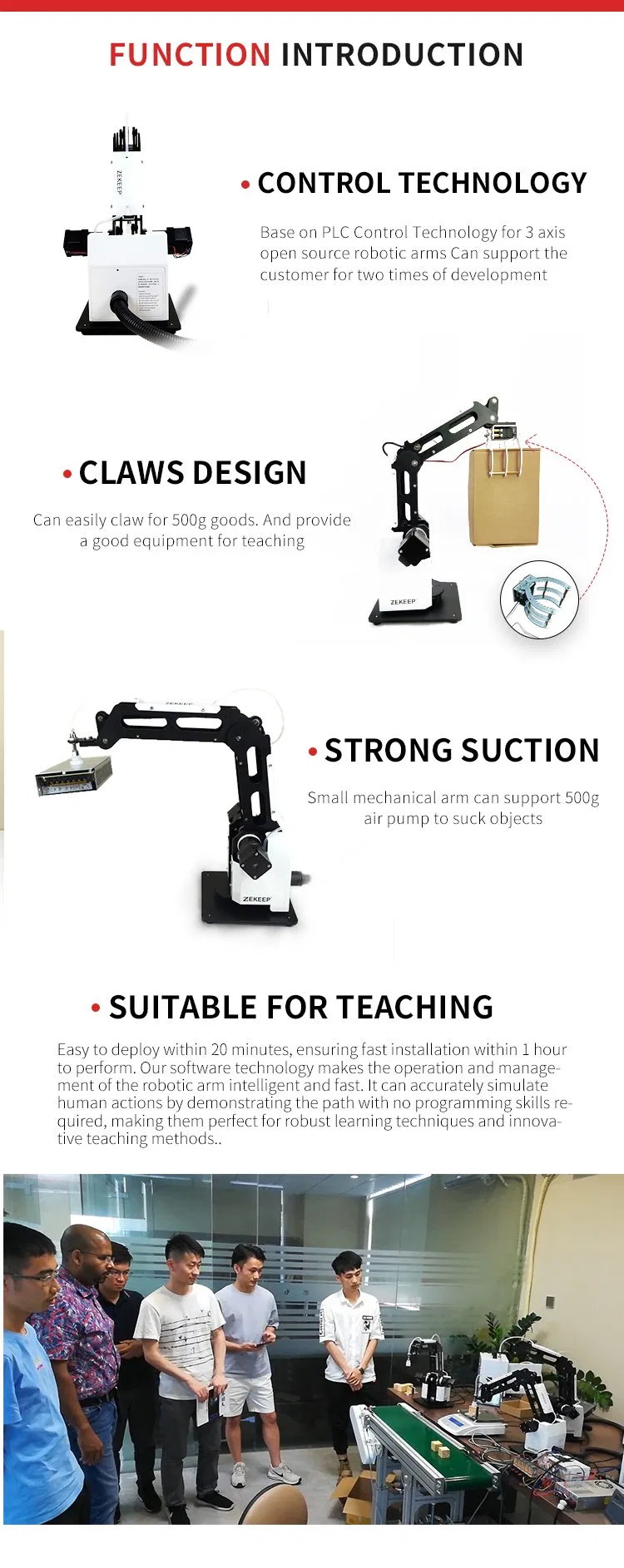

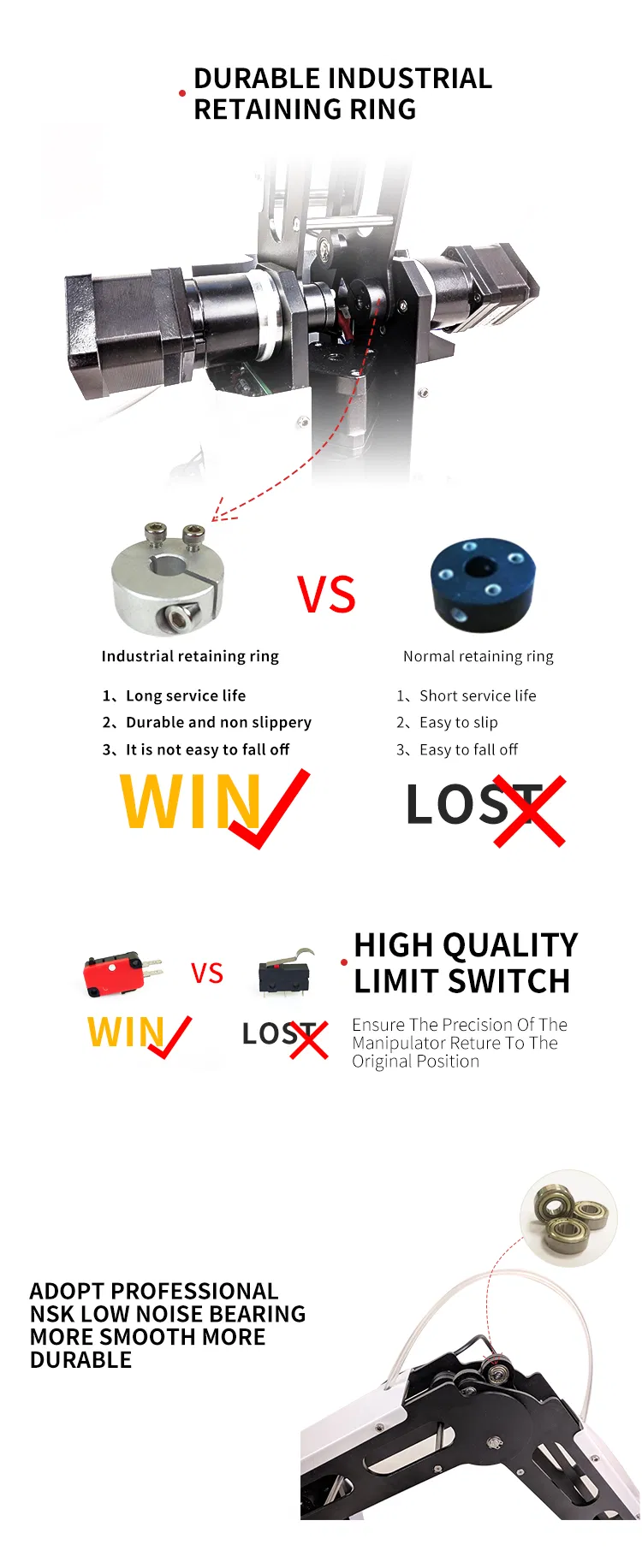

📸 Product Details

❓ Frequently Asked Questions

Can robotic arms be used in industry?

With a max payload of 0.5kg, it can be used in light industrial production lines for tasks such as teaching, sorting, and clawing objects.

Is it suitable for teaching or training organizations?

Yes, it satisfies basic introductory teaching training. It features PLC control, open-source motion control, and teach pendant programming similar to large industrial robots but at a lower cost.

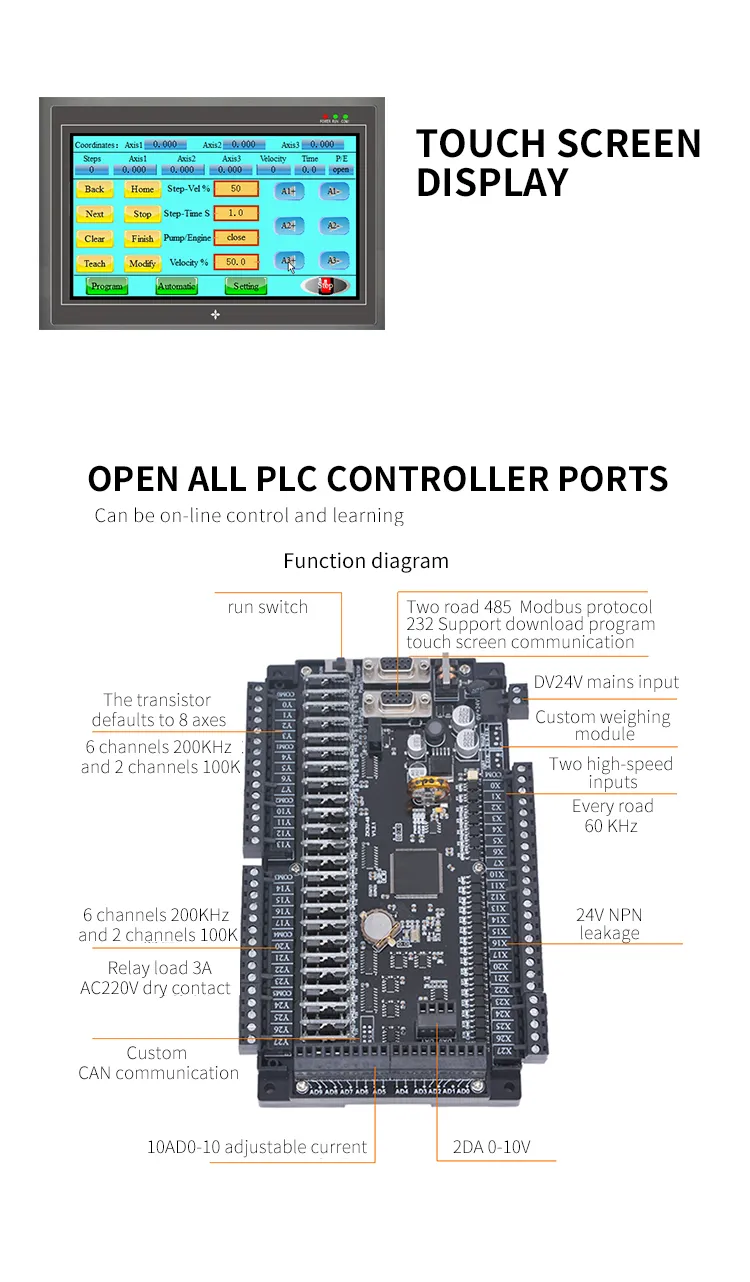

What does the open source PLC algorithm include?

It includes PLC ladder programming algorithms and teach pendant programming. All ports of the PLC control board are open for secondary development.

Can I control the arm without programming knowledge?

Yes, the touch teach pendant is designed to be easy to operate for users without programming skills.

Is the speed adjustable and can it perform cycle work?

It supports motion node cycles within 50 steps. Node coordinates, node motion speed, and overall speed can be adjusted at any time via the teach pendant.

What language does the system support?

The user interface and all technical documentation are provided in English.
